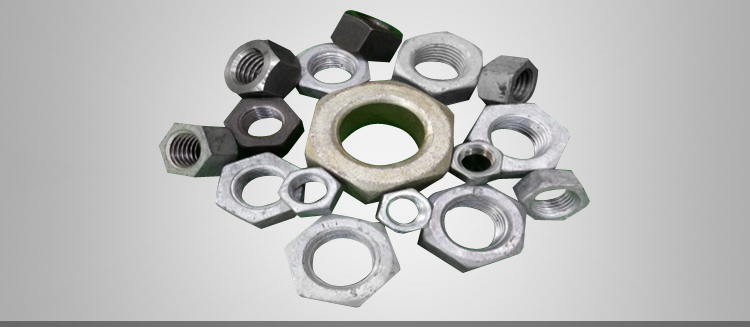

Home > 제품소개 > 육각너트

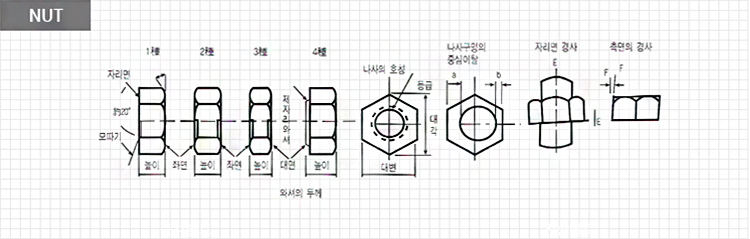

Nominal Size
or Basic
Bolt Dia(d) 		r k a.b E F h S
app Max Max Max Basic Tol
M 12 0.8 ~ 1.6 2 0.7
0.8
0.9
1.1		 1˚ 2˚ 0.4 ~ 0.8 25 ± 5
0
M 16 1.2 ~ 2.0 30
M 20 2.5 35 ± 6
0
M 22 40
M 24 1.6 ~ 2.4 3 1.2
1.3		 45
M 27 50
M 30 2.0 ~ 2.8 3.5 3.5 55
Nominal Size
or Basic
Bolt Dia(d) 		Major
Dia		 H B C D D1 ab E F h
Basic Tol Basic Tol App App Min Max Max Max
M 12 12 12 ± 0.35 8 0
-0.8		 25.4 20 20 0.5 1˚ 2˚ 0.4 ~0.8
M 16 16 16 10 31.2 25 25 0.8
M 20 20 20 ± 0.4 13 0
-1		 37 30 29 0.9
M 22 22 22 14 41.6 34 33 1.1
M 24 24 24 15 47.3 39 38 1.2
M 27 27 29 17 53.1 44 43 1.3
M 30 30 30 19 57.7 48 47 1.5
