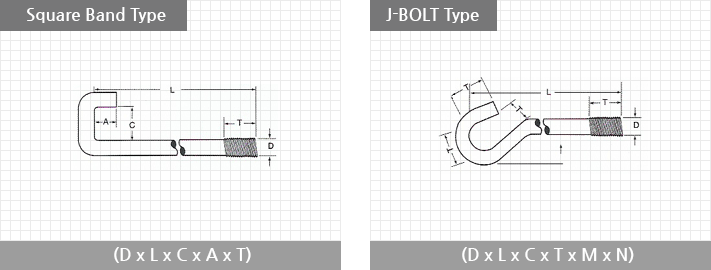

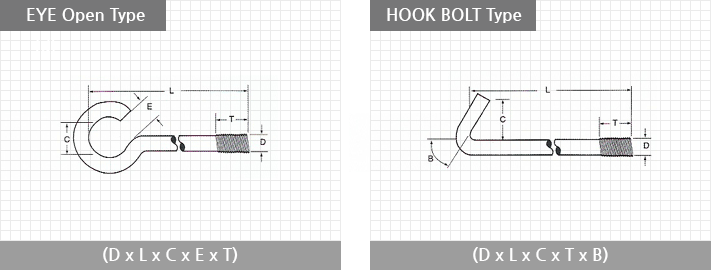

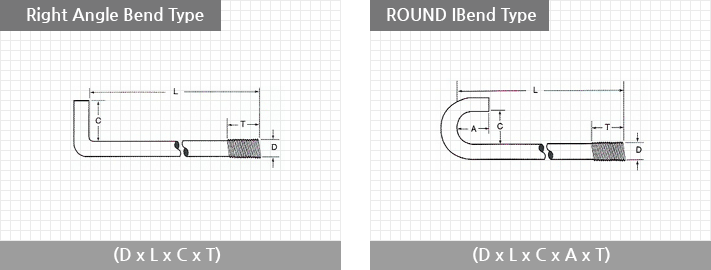

Nominal Size |
Out dia of Pipe |

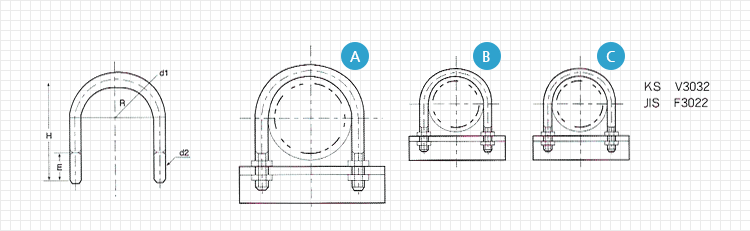

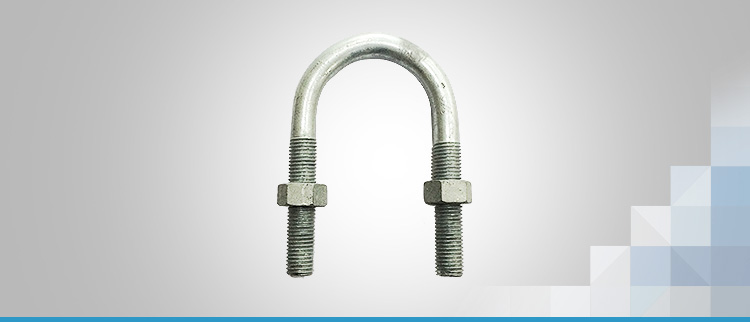

U-BOlT | ||||||||
R | d1 | d2 | TYPE A | TYPE B | TYPE C | |||||
H | E | H | E | H | E | |||||
15 | 21.7 | 12 | 5.25 | - | - | 39 | 20 | 47 | 47 | 30 |
20 | 27.2 | 15 | 5.25 | - | - | 45 | 20 | 53 | 53 | 30 |
25 | 34.0 | 18 | 5.25 | - | - | 52 | 20 | 60 | 60 | 30 |
32 | 42.7 | 23 | 7 | - | - | 60 | 20 | 68 | 68 | 30 |
40 | 48.6 | 26 | 7 | - | - | 66 | 20 | 74 | 74 | 30 |
50 | 60.5 | 32 | 7 | - | - | 78 | 20 | 86 | 86 | 30 |
65 | 76.3 | 40 | 8.9 | - | - | 98 | 25 | 108 | 108 | 35 |
80 | 89.1 | 46 | 8.9 | - | - | 110 | 25 | 120 | 120 | 35 |
90 | 101.6 | 52 | 8.9 | - | - | 123 | 25 | 133 | 133 | 35 |
100 | 114.3 | 59 | 8.9 | 141 | 50 | - | - | - | - | - |
Nominal Size |
PIPE | U-BOLT | ||||||||||
Pipe | Pipe Out Dia |
R | d1 | d2 | TYPE A | TYPE B | TYPE C | |||||
A | B | H | E | H | E | H | E | |||||
15 | 15 | 1/2 | 21.7 | 11 | 5.3 | 1/4 | - | - | 39 | 16 | 47 | 30 |
20 | 20 | 3/4 | 27.2 | 14 | 5.3 | 1/4 | - | - | 45 | 16 | 53 | 30 |
25 | 25 | 1 | 34.0 | 18 | 5.3 | 1/4 | - | - | 52 | 16 | 60 | 30 |
32 | 32 | 11/4 | 42.7 | 22 | 6.8 | 5/16 | - | - | 60 | 16 | 68 | 30 |
40 | 40 | 11/2 | 48.6 | 25 | 6.8 | 5/16 | - | - | 66 | 16 | 73 | 30 |
50 | 50 | 2 | 60.5 | 31 | 6.8 | 5/16 | - | - | 78 | 16 | 85 | 30 |
65 | 65 | 21/2 | 76.3 | 39 | 8.3 | 3/8 | - | - | 98 | 20 | 106 | 35 |
80 | 80 | 3 | 89.1 | 45 | 8.3 | 3/8 | - | - | 110 | 20 | 120 | 35 |
90 | 90 | 31/2 | 101.6 | 51 | 8.3 | 3/8 | - | - | 123 | 20 | 132 | 35 |
100 | 100 | 4 | 114.3 | 58 | 8.3 | 3/8 | 140 | 150 | - | - | - | - |
